Archived

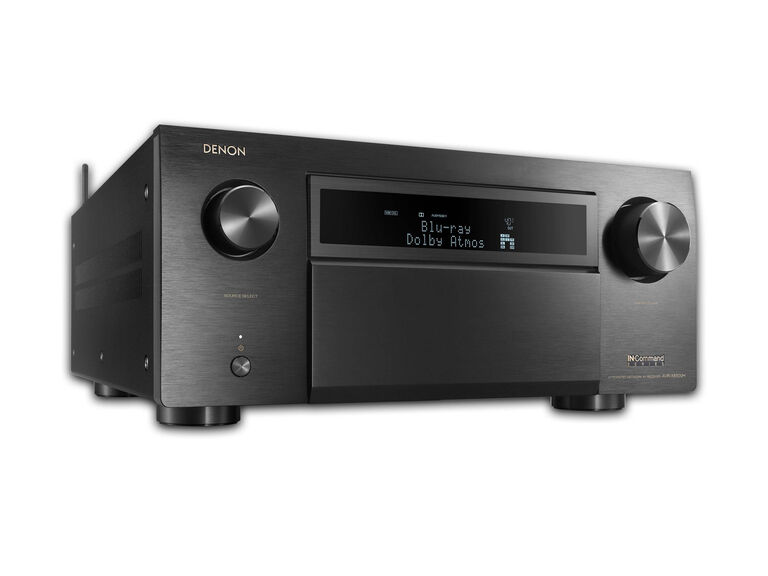

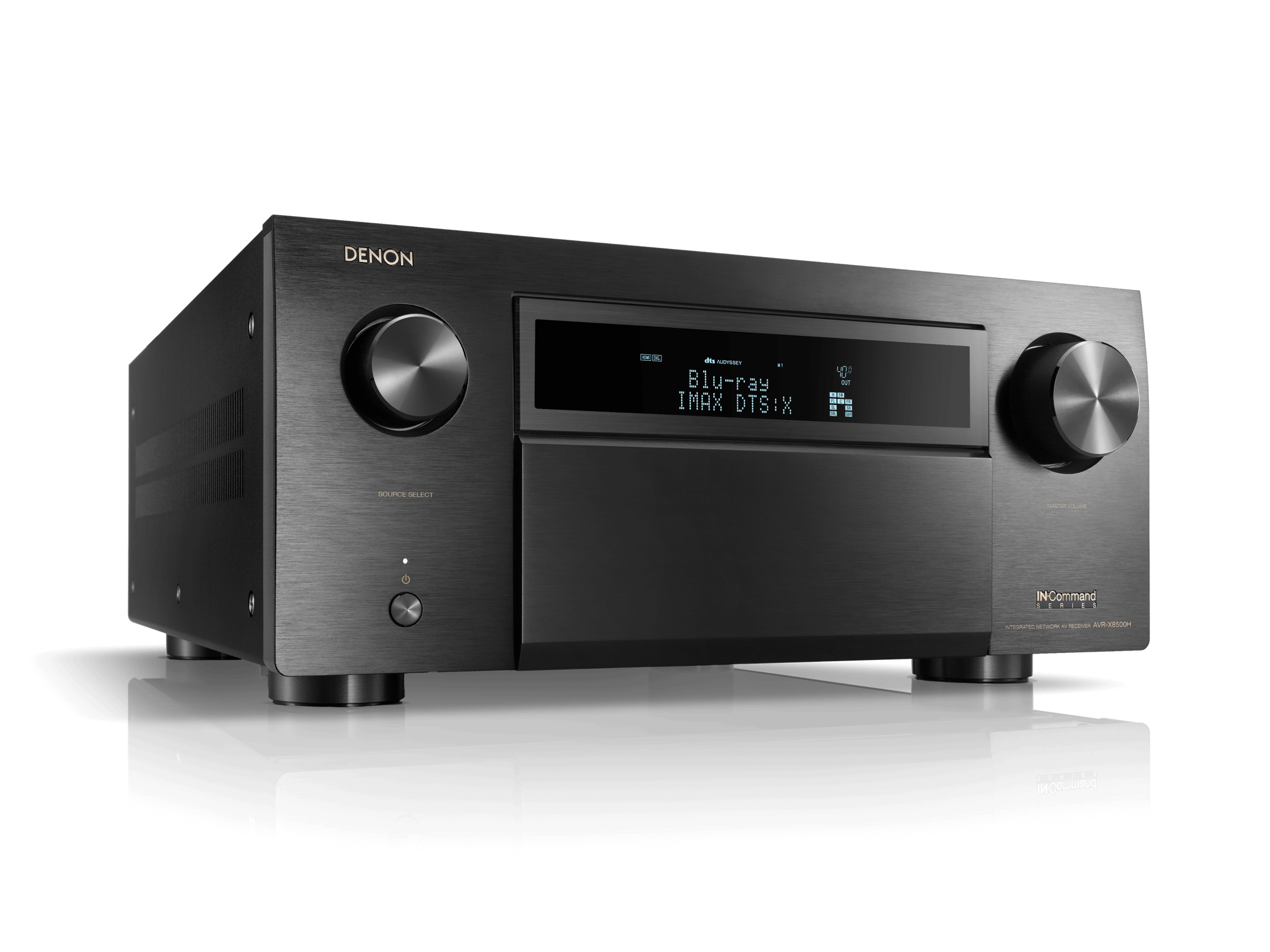

AVR-X8500HA

Name: AVR-X8500HA
Brand: Denon
SKU: 300056-01-00-101
Price: 5999.00 CAD
Availability: OutOfStock

13.2 Ch. 150W 8K AV Receiver with HEOS® Built-in

Upgrade your expectations in home theater and audio entertainment with the AVR-X8500HA; the world's first 13.2Ch 8K AV receiver.

Select Quality

Color

Black

AVR-X8500HA

Details & Specifications

Multichannel Surround

DTS HD Master / DTS:X / DTS:X Pro Yes / Yes / Yes (update)
DTS Neo:X / DTS Neural:X No / Yes (11ch)
DTS Virtual:X Yes
IMAX Enhanced Yes
Dolby TrueHD / Dolby Atmos / Dolby Atmos Height Virtualization / Dolby Atmos Music Yes / Yes / Yes / Yes
Dolby ProLogic Ilz / Dolby Surround No / Yes
Auro 3D Yes
360 Reality Audio / MPEG H No
Audyssey DSX No
Multichannel Stereo Yes
Max Number of Processing (Preamp) Channels 13.2

Sound Enhancements

Network

Media Server Yes
HEOS Wireless Multi-Room Technology Yes
Bluetooth Re-transmit for Bluetooth headphones No
Alexa / Google Voice Assistant / Apple HomePod Yes / Yes / Yes
Lossy Formats: MP3 / WMA / AAC Yes / Yes / Yes
Lossless Formats: FLAC / ALAC / WAV Yes / Yes / Yes
Lossless formats: FLAC HD 192/24 / WAV 192/24 / ALAC 192/24 Yes / Yes / Yes
DSD Audio Streaming Yes (2.8/5.6MHz)
FLAC HD 192/24 Yes
WAV 192/24 Yes
ALAC 192/24 Yes
Gapless playback Yes (FLAC, WAV, ALAC ,DSD)
Photo Streaming (JPEG) No
AirPlay Audio Streaming Yes (AirPlay2)
Internet Radio Yes (TuneIn)
Spotify* Yes (connect)
Pandora Yes
SiriusXM Yes
Other Streaming Services Amazon Music HD/
Amazon Music / TIDAL / Deezer / iHeart Radio / Napster / Soundcloud / Mood Mix
Roon Tested Yes
HEOS App Control Yes
Compatible with Remote APP for Smart Phones Denon 2016 AVR Remote
Compatible with Remote APP for Tablets Android / iOS / Amazon Kindle
Ethernet Ports Yes
Wi-Fi Yes
Bluetooth Yes

HDMI

HDMI Inputs: Back / Front 7 / 1
HDCP2.3 support Yes
HDMI Outputs: Main / Zone 2 / 1
Video Conversion Analog -> HDMI Yes
Analogue to HDMI scaling up to 8K 60/50
HDMI to HDMI Scaling up to 8K 60/50
GUI Overlay on HDMI Yes / Yes
HDMI: 8K/60Hz AB / 4K/120Hz AB Yes / Yes
HDMI 2.0: 3D / 4K / CEC / ARC / InstaPrevue Yes / Yes / Yes / Yes / No
Enhanced ARC Yes
HDR / HLG / Dolby Vision / HDR10+ / Dynamic HDR Yes / Yes / Yes / Yes / Yes
ALLM (Auto Low Latency Mode) Pass-through for gaming Yes
Variable Refresh Rate / Quick Flame Transport / Quick Media Switching Yes / Yes / Yes
3D Signal Pass-through Yes
8K signal pass-through / scaling / GUI overlay Yes / Yes / Yes
4K Signal Pass-through / Scaling / GUI Overlay Yes / Yes / Yes
HDMI pass-though in standby mode Yes
Picture Adjust / Noise Reduction Yes / Yes
CEC Yes
DSD Audio Capability Yes
Audio Return Channel Yes
Auto LipSync Yes

Multi-room CI

Multiroom zones 3
Zone Audio Source: HDMI / Opt, Coax / Network, USB / Analog Yes (2ch) / Yes (2ch) / Yes / Yes
Zone Audio Output: Speaker / Preout Yes / Yes
Zone HDMI Output from HDMI Source Yes
IP Control / RS232 Control / Web Control / App Control Yes / Yes /Yes / Yes
Remote In / Out Yes / Yes
DC Trigger Output 2
HDMI Diagnostics Yes

Others

Inputs Outputs

Composite In / Out 4 / 2
Component In / Out 3 / 1
HDMI In / Out 7+1 / 3
Multi-room Video Out: Video / HDMI Yes / Yes
Analogue In/out 6 / No
Phono (MM) In Yes
Digital In: Optical / Coaxial 2 / 2
Multi-room Out: Analog / Digital 2 / No
Multichannel Pre-out Yes (15.2)
Subwoofer Out 2 (independent)
7.1 Multichannel Input Yes
Speaker Terminal: Gold Plated Screw / Regular Screw Yes / No
Number of Speaker Terminals 15
Speaker A / B assignable
Bi-amp Drive assignable
Multi-Room Speaker Terminal assignable
Front Inputs: Audio / Composite / Digital (Opt) / HDMI / USB No / No / No / Yes / Yes
USB Audio / Made for iPod / Made for iPhone Yes / No / No
AM/FM Tuner Yes

Specifications

Number of Power Amps 13
Power Output (8 ohm, 20 Hz - 20 kHz, 0.08% 2ch Drive) No
Power Output (8 ohm, 20 Hz - 20 kHz, 0.05% 2ch Drive) 150 W
Power Output (6 ohm, 1 kHz, 0.7% 2ch Drive) 190 W
Power Output (6 ohm, 1 kHz, 10% 1ch Drive) 260 W

General
