PMA-800NE

2 Ch. 85W integrated Amplifier

Featuring digital inputs and a built-in phono equalizer, the Denon PMA-800NE integrated amplifier sets new standards in premium audio performance with the power to drive all your content.

Stereo amplifier
50W per channel (8 ohms)
Advanced circuitry
Bluetooth
Digital inputs
MM phono

Select Quality

Colour

Silver

PMA-800NE

Details & Specifications

pma-800ne-owners-manual-en-eu.pdf

Features

Channels 2
Digital in: USB-B / optical / coaxial / USB-A No / 3 / 1 / No
Sample Rate digital In 192 kHz / 24-bit
DAC chip PCM5141
Analogue Mode Yes
Advanced HC-TR single push pull circuit Yes
Wide range amplifier Yes
High current dynamic power supply Yes
Power amp discrete construction Yes
Micro processor auto off Yes
Balance / Bass / Treble / Loudness Yes / Yes / Yes / No

Others

Shottky diodes Yes
Solid Heat Sinks Yes
Source Direct Yes

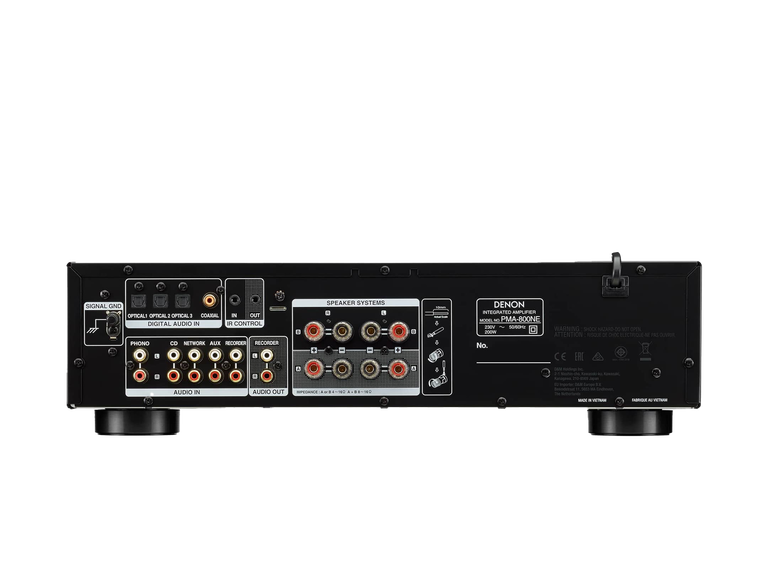

Inputs Outputs

Audio Inputs 5
Digital in: USB-B / optical / coaxial / USB-A No / 3 / 1 / No
Phono Input: MM / MC Yes / Yes
Audio Outputs 1
Pre-out / Main-in No / No
Gold plated Cinch Yes
Speaker A / B Yes
Number of terminals 4
Remote Control Bus in / out Yes
HEOS Link compatibility: IR / IP Yes / No
Headphone Out Yes

Specifications

Output power 8 Ohm (20 Hz - 20 kHz, T.H.D. 0.07%) 50 W
Output power 4 Ohm (1 kHz, T.H.D. 0.7%) 85 W
Total Harmonic Distortion 0.01%
Input Sensitivity: MM 2.5 mV / 47 kohm
Signal to Noise Ratio: MM/MC 86 dB / 71 dB
Input Sensitivity: High level 105 mV / 40 kohms
Signal to Noise Ratio: High level 105 dB
Treble Control ± 8 dB at 10 kHz
Bass Control ± 8 dB at 100 Hz

General

Available colours: Black / Premium Silver Yes / Yes
Metal Front Panel Yes
Power Consumption in W 200
Standby Consumption in W 0.3
Auto Power Off Yes

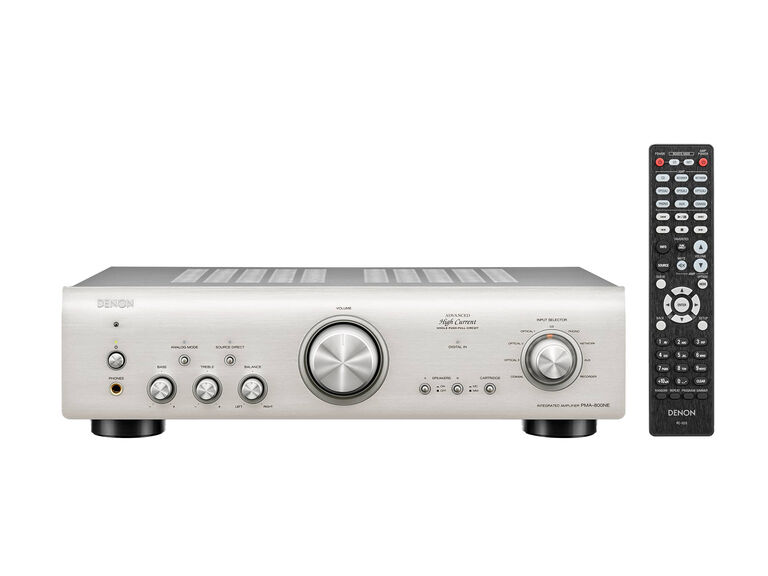

Remote Control RC-1223
System Remote Function Yes
Maximum Dimensions (W x D x H) in mm 434 x 307 x 122
Weight in kg 7.5
