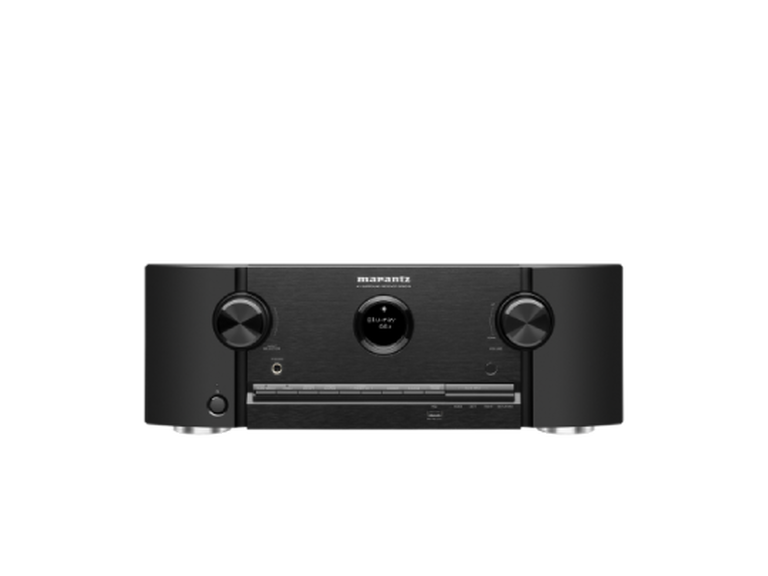

SR5015 - AV RECEIVER, Black, dynamic

SR5015 - AV RECEIVER

7.2 Channel AV Receiver with 100W, 8K and 6 HDMI Inputs

Featuring 100W per channel power, 8K upscaling, and enhanced audio return channel (EARC) HDMI Support.

Select Quality

Color

Black

SR5015 - AV RECEIVER

Details & Specifications

General

Available Colors: Gold / Silver / Black / Silver-Gold No / No / Yes / Yes
Carton Maximum Dimensions (W x D x H) in mm 520 x 429 x 243
Carton Weight (inc. product) in kg 12.3
CEC Standby Consumption in W 0.5
Maximum Dimensions
Antenna:Horizontal:(W x D x H) in mm
Antenna:Vertical :(W x D x H) in mm
W/o Antenna:(W x D x H) in mm 440 x 348 x 161
( 440 x 348 x 231 )
440 x 338 x 161 】
Metal Front Panel No
Network Control On Consumption in W 3.7
Power Consumption in W 650
Power Consumption No-Sound (ECO on/off) in W 45 W / 75 W
Pre-Programmed / Learnable / LCD Display No / No / No
Standby Consumption in W 0.2
Weight in kg 10.1

HDMI

DSD Audio Capability No
HDCP2.3 support Yes
HDMI: 8K / 4K / CEC / eARC Yes / Yes / Yes / Yes
HDMI: ALLM / QMS / QFT / VRR Yes / Yes / Yes / Yes
HDMI: Dolby Vision / HDR 10+ / Dynamic HDR / HLG Yes / Yes / Yes / Yes
HDMI Inputs: Back / Front 6 / 0
HDMI max Resolution (8k / 4k) 8k/60 - 4k/120**
HDMI Outputs: Main / Zone 2 / No
HDMI Pass-Through in Standby Mode Yes
HDMI to HDMI Scaling up to 8K 60/50
Video Conversion Analog -> HDMI Yes

Inputs Outputs

7.1 multichannel input No
Analogue In / Out 4+1 / No
Bi-amp drive assignable
Component In / Out 2 / 1
Composite In / Out 2+1 / 1
DAB / DAB+ tuner No
Digital In: Optical / Coaxial 2 / 2
FM Tuner with RDS Yes
Front Inputs: Audio / Composite / Digital (Opt) / HDMI / USB Yes / Yes / No / No / Yes
HDMI In / Out 6 / 2
Multichannel Pre Out Yes (7.2)
Multi-Room Out: analog / digital 1 / No
Multi-Room Speaker Terminal assignable
Multi-Room Video Out: Video / HDMI No / No
Number of Speaker Terminals 7
Phono (MM) In Yes
Speaker A / B assignable
Speaker Terminal: Gold plated screw / regular screw No / Yes
Subwoofer Out 2
USB Audio (Front) / Made for iPod / Made for iPhone® Yes / AirPlay / AirPlay

Multichannel Surround

Multi-Room CI

DC Trigger Output 1
HEOS Multi-Room Integrated Yes
IP Control / RS232 Control / Web Control / App Control Yes / Yes / Yes / Yes
IR Flasher In Yes
Main room multichanel audio - Zone stereo downmix Yes
Marantz Remote Bus Yes
Multi-Room Zones 2
TV Sound grouping Yes
Webbrowser Setup Yes
Zone Audio Output: Speaker / Preout Yes / Yes
Zone Audio Source: HDMI / Opt, Coax / Network, USB / Analog Yes (2ch) / Yes (2ch) / Yes / Yes
Zone HDMI Output from HDMI Source No

Network

AirPlay 2 Yes
ALAC 192/24 Yes
Amazon Prime Music* / Pandora* Yes / Yes
Bluetooth Yes
Bluetooth Headphone transmission Yes
Compatible with Remote APP for Smart Phones Android / iOS
Compatible with Remote APP for Tablets Android / iOS/Amazon Kindle
DSD Audio Streaming up to DSD5.6
Ethernet Ports Yes
FLAC HD 192/24 Yes
Gapless Playback Yes (FLAC, WAV, ALAC, DSD)
HEOS Multi-room and Streaming Yes
Internet radio TuneIn
Lossless formats FLAC / ALAC / WAV Yes / Yes / Yes
Lossy formats MP3 / WMA / AAC Yes / Yes / Yes
Roon Tested Yes
Spotify Connect* / Tidal* / Deezer* / others * Yes / Yes / Yes / Yes
WAV 192/24 Yes
Wi-Fi Yes

Others

Auto Power off Yes
Auto Speaker Setup by Microphone Audyssey MultEQ XT
Bass Sync No
ECO Mode Yes
Firmware Update by Network / USB Yes / Yes
FL Display port hole
Graphic User Interface - GUI Advanced
GUI Languages 9
ISF Certification Yes
Optimized Bass Redirection Yes
Setup Assistant Yes
Sleep Timer Yes
Smart Select Yes
Variable Cross Over Yes
Voice Control - Google Assist / Apple Siri Yes / Yes
Voice Control - Microphone built-in No
Voice Control - Works with Amazon Alexa Yes

Sound Enhancements

Audyssey MultEQ XT
Audyssey APP Support Yes
Audyssey Dynamic EQ / Dynamic Volume Yes / Yes
Audyssey LFC No
Clock Jitter Reducer No
Compressed Audio Enhancer: MDAX2 Yes
Copper Plated Chassis No
Current Feedback Topology Yes
Discrete Power Amplifier 7
Gold plated RCA terminals No
High Grade Audio Components Yes
Hyper Dynamic Amplifier Modules (HDAM) Yes
Power Transformer: Toroidal / EI EI
Pure Direct Yes
Single Board Power Amplifier No
Speaker Setup Presets 2
