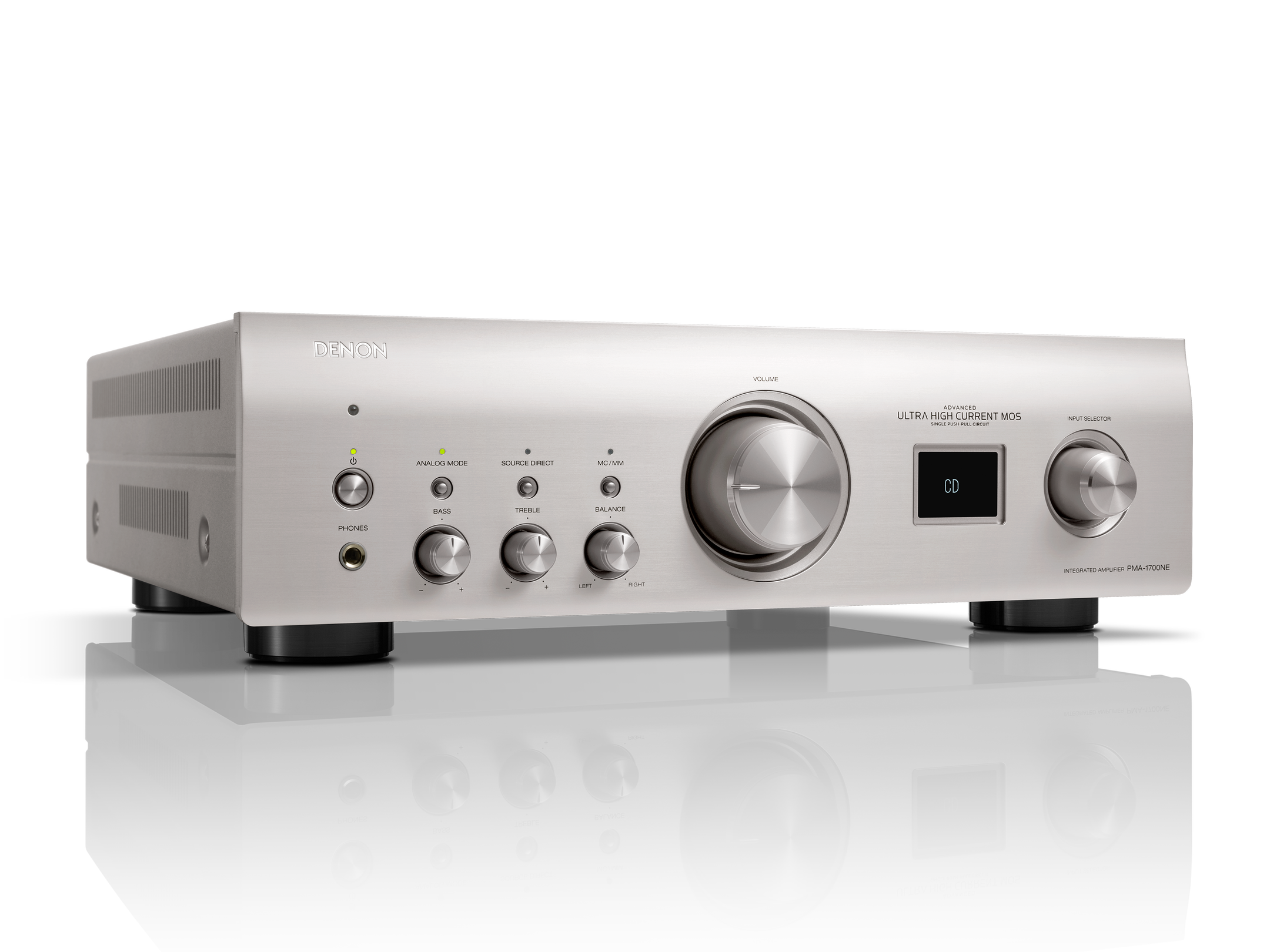

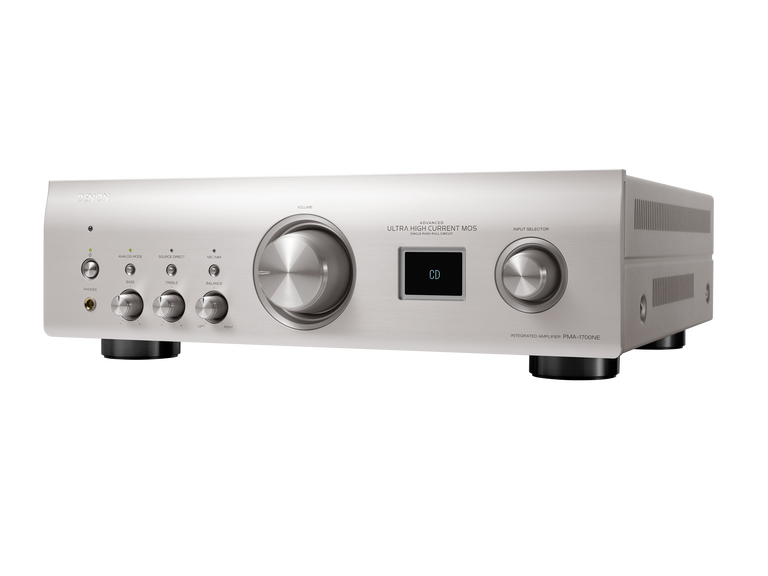

PMA-1700NE

140W双声道集成式放大器，带USB-DAC

PMA-1700NE集成式功放采用出色的大电流的单推挽电路和Advanced AL32 Processing Plus，重现纯净原音。

立体声放大器
每声道 70 W（8 欧姆）
AL32 处理
USB-DAC
精准电子控制
MM/MC 唱机

选择 Quality

查找零售商

PMA-1700NE

探索身临其境的上乘功放

更大带宽捕捉从深沉低音到细腻高音的每一种声音。

Powerful & faithful amplification

Powerful sound from an integrated amplifier

Engineered with premium Denon technologies, this amplifier drives two channels at 140W.

Faithful audio reproduction

Advanced AL32 Processing Plus delivers the richly detailed sound the artist intended.

Build integrity with selected components

With more than 110 years of audio excellence, Denon products are built to last.

PMA-1700NE

为您的高保真音响体验注入澎湃动力

PMA-1700NE

为您的高保真音响体验注入澎湃动力

140W大功率集成放大器

这款集成放大器每声道输出功率高达 140 W（4 欧姆），可强劲驱动您的扬声器。它兼容多种 6 扬声器类型和阻抗，确保运行稳定可靠。

AL32处理增强版

AL32 处理增强版支持高达 384 kHz/32 位的高解析度音频源。该算法可还原数字录制过程中丢失的信息，呈现细节丰富的逼真音效。

USB-DAC

为精确同步数字电路，PMA-1700NE 配备了 USB-DAC 功能，支持高达 11.2-MHz DSD 和 384-kHz/32 位 PCM 的高解析度输入信号。这款 DAC 采用更高品质元件打造，可有效抑制抖动，确保数模转换精准无误。

高精度电子控制

PMA-1700NE 采用电子音量、平衡和音调控制，保留了模拟操控感，其特有的机构可实现平滑、线性的调节体验。

关键技术

Ultra AL32 Processing is the latest in analog waveform reproduction technology from Denon.

Ultra AL32 Processing is the latest in analog waveform reproduction technology from Denon.

PMA-1700NE

详细信息和规格

General

Unit (W x D x H) 434 x 410 x 135mm
17.1 x 16.1 x 5.3in
Cabinet Size (W x D x H) 434 x 374 x 135mm
17.1 x 14.7 x 5.3in
Net weight 17.6kg
38.8lb
Packaging Dimensions (W x D x H) 548 x 520 x 249mm
21.6 x 20.5 x 9.8in
Packaging gross weight 20.4kg
45lb
Carton Color 2 Color
Cushion / Packing 4 Separate / Sheet
Panel Color SP / BK
Front (Center) Panel Aluminum
Side cover SECC with 4 straight emboss
Side screw SP: Nickel / BK: Black
Rear Panel SECC t1.0mm
Chassis Material SECC t1.2mm
Bottom Layer Single
Volume Knob Aluminum
Input Selector Aluminum
Bass/Treble/Balance/ Phono Sel knobs Aluminum
Power button Aluminum
Other knob/button (LOUDNESS, SOURCE DIRECT etc) Mold (Source Direct,Analog Mode,MM/MC)
Foot ABS resin with rigid rib
w/Hot stamp
(H : 20mm)
Heatsink for Power Amplifier Extruded Aluminum

Specifications

Rated Output Power 70W + 70W
(8ohm,20Hz-20kHz,THD0.07%)
140W + 140W
(4ohm, 1kHz, THD0.7%)
Speaker Impedance A or B : 4 ~ 16ohm
A + B : 8 ~ 16ohm
Frequency Response 5Hz - 100kHz (0~ -3dB)
Total Harmonic Distortion 0.01 % (Rated output: –3 dB),
8 ohm/ohms, 1 kHz
Dumping Factor 100 and over
Input Sensitivity: Phono input MM: 2.5 mV / 47 kohm
MC: 200
RIAA Deviation 20 Hz - 20 kHz ±0.5 dB (MM/MC)
Phono Maximum Input MM : 130mV / 1kHz
MC : 10mV / 1kHz
Input Sensitivity: CD/LINE/RECORDER 125 mV / 19 kohm
Input Sensitivity: Power Amp input 0.85V / 47kohm (EXT. PRE)
Signal to Noise Ratio PHONO (MM): (89dB)
PHONO (MC): (74dB)
CD: (107dB)
Tone Control BASS : 100Hz ±8dB
TREBLE : 10kHz ±8dB
Power Consumption 295W
at Standby 0.2W TV autoplay off
0.4W TV autoplay on

Audio Feature

Power Amplifier Circuit New UHC-MOS
Single Push Pull (7)
Power Trans Dual El Core
Pre Amplifier Circuit Variable Gain Preamplifier
(OP AMP)
Volume Electric
(MUSES 72323)
Bass / Treble / Mid / Balance Control Yes / Yes / No / Yes
Type of Tone Control Electric
Controlled by Potentiometer
Headphone Circuit Use Poweramplifier
Source Direct Yes
Analog Amp Mode Yes (button on front panel)
Other 70
DAC Circuit PCM1795
Digital Filter Fixed
Digital Processing Advanced AL32 Processing Plus
DAC Master Clock Design (Doesn’t Support Network Playback) Yes
Asyncronous mode (for USB-B input) yes
Isolator (for USB-B input) Yes
Full Isolation

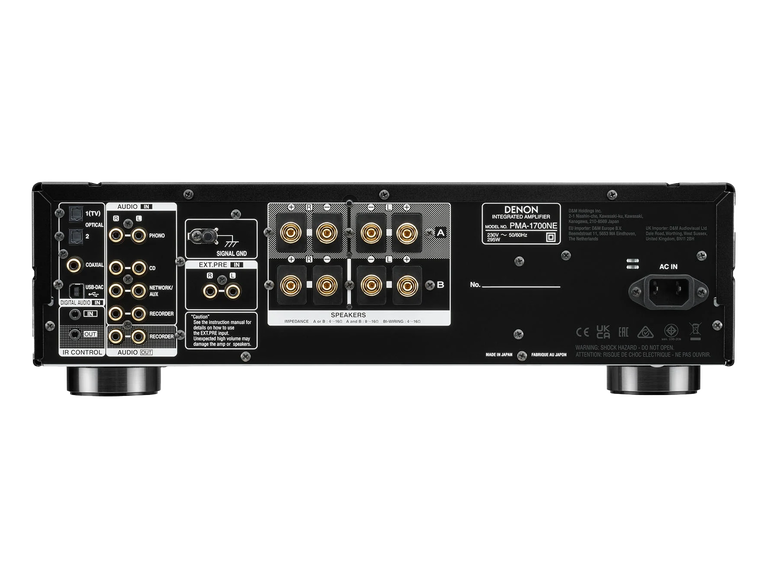

Connectivity

Phono Input Yes (MM / MC)
*default=MM
Analog Input (include Phono) / REC Out (RCA) 4/1 (PHONO/ CD/ AUX/ RECORDER)
Optical input / output (Maximum Support) 2 / 0 (192kHz/24bit)
Coaxial input / output (Maximum Support) 1 / 0 (192kHz/24bit)
Ext. Pre Input (Power Amp Direct) Yes(Ext.Pre)
2 sets of Speaker Output Yes (Bi-wiring)
Speaker Terminal Gold Plated
Headphone Output 1
(Turn off the speaker when inserting headphone)
Remote Control Bus Terminal Yes (mini)
AC Inlet Yes
Wi-Fi No
HEOS No
USB B (USB DAC) 1 (Rear)
Module or Main Device New XMOS
(XU210-256-TQ128 )
PCM Sample Rate ~384kHz/32bit
DSD Audio Streaming (DoP) ~11.2MHz
Roon Certificaton Yes(Roon Tested)
TBD

Control

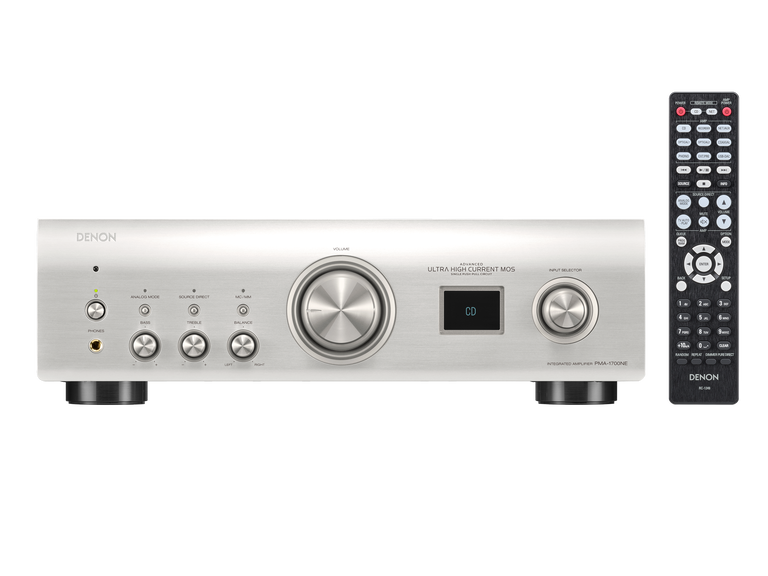

Remote Controller System Remote
(w/CD Player Control)
Unit control (Button) Push Switch: 1
POWER
Tact Switch : 3
ANALOG MODE, SOURCE DIRECT, MM / MC
Unit control (Knob) 5
VOLUME, INPUT SELECTOR, BASS, TREBLE, BALANCE
LED POWER: 1 Red / Green
ANALOG MODE: 1 Green
SOURCE DIRECT: 1 Green
MM / MC :1 Green
Front Panel Display Yes
(OLED 128 x 100 dot)
MXS4036-A
Display Language Alphabetical
Dimmer for Front Display Bright / Dim / Dark / Off
Control with App via Network Player (Use Remote Control Bus) Yes
TV Auto-play (Opt/Coax digital-in detecter) Yes
Last Function Memory Yes
Auto Standby Mode Yes
Owner's Manual Web Manual
E2: (English, German, French, Italian, Dutch, Spanish,
Swedish, Polish, Russian)
E3: (English, French, Spanish)
E1C: (Simplified Chinese)
JP: (Japanese)
Paper
JP: (Japanese)
Quick Start Guide Paper
E2: (English, German, French, Italian, Dutch, Spanish,
Swedish, Polish, Russian)
E3: (English, French, Spanish)
E1C: (Simplified Chinese)
JP: (Japanese)
Remote Controller Yes
Battery Yes (AAA x2)
Power Cord Yes
