AVR-S660H

Name: AVR-S660H
Brand: DEN
SKU: AVRS660HCN-BLK
Availability: OutOfStock

AV接收机

Denon AVR-S660H 5.2ch 8K AV接收机，单个声道功率达150W（6欧，1kHz，10% THD，单声道，JEITA），全面兼容Dolby TrueHD、Dolby Surround、DTS-HD Master Audio和DTS Neo:6；支持先进的HDMI规格，如：8K/60Hz、4K/120Hz直通VRR、ALLM、HDR10+和eARC。

选择 Quality

颜色

黑色

数量

库存情况:

Item Unavailable

查找零售商

AVR-S660H

Get more with a surround sound AV receiver

Full support of key Dolby sound technologies along with the latest HDMI specifications.

Step up to performance

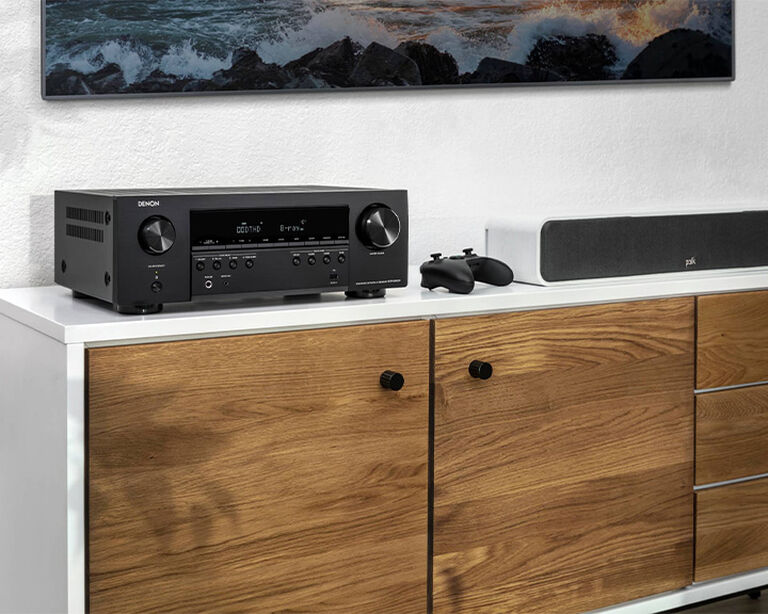

Powerful, discrete 5-channel amplifier

Delivers maximum performance and 135W per channel to provide the classic and dynamic Denon sound experience.

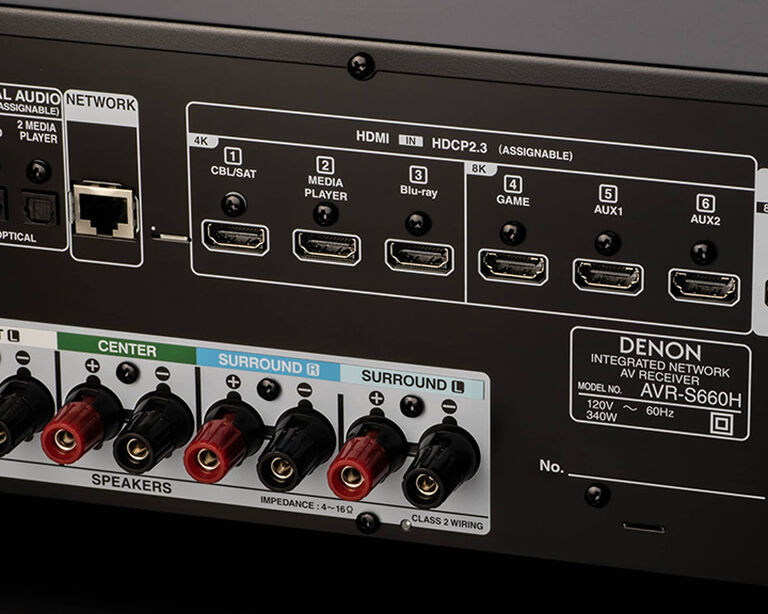

Advanced 8K HDMI video with eARC support

Three 8K inputs support the latest HDMI specifications—8K/60Hz, select 4K/120Hz pass-through, VRR, Dolby Vision™, HDR10+, and ALLM.

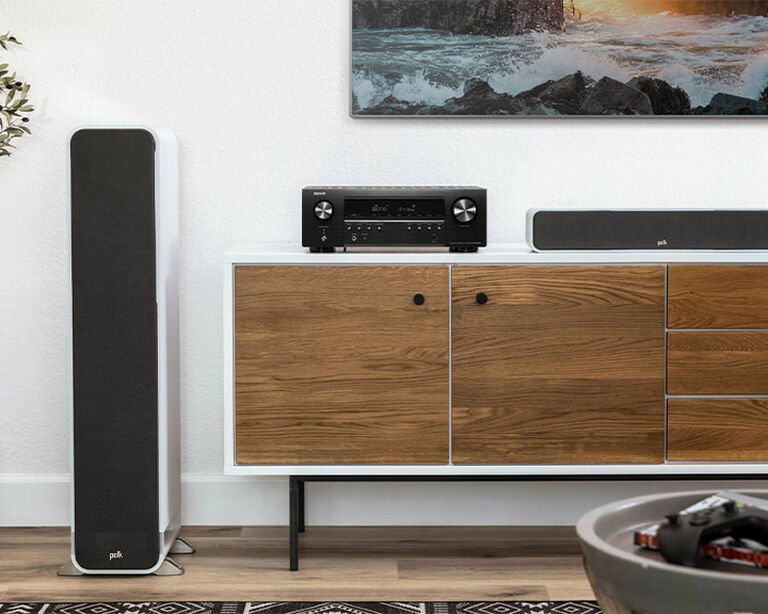

Full surround sound experience

Enjoy enveloping Dolby TrueHD or DTS-HD Master Audio 5.1 surround sound from Blu-ray, streaming services and TV.

AVR-S660H

Step up to performance

AVR-S660H

Step up to performance

Wireless music streaming

Enjoy music services like Spotify®, Amazon Music HD, TuneIn, and more with HEOS® Built-in.

Enhanced gaming experiences

Variable Refresh Rate (VRR) and Auto Low Latency Mode (ALLM) care for amazing imaging and reduced latency.

Built-in Bluetooth, Wi-Fi

Dual-antenna transceiver for robust Bluetooth and Wi-Fi streaming even in congested environments.

Easy setup and operation

Once you connect your TV to the AVR-S660H, the Denon Setup Assistant walks you through the setup, step by step.

Denon标志性声音

音响创新历程

一个多世纪以来，我们精心打造众多先进音响产品，打造细腻丰富的音质。传承日本悠久工艺，每件产品均由我们的“声音大师”手工调谐。

比较Denon AV接收器

此型号

AVR-S660H

AV接收机

AVR-S670H

音响底座

5.2 Channels

High-definition surround

8K HDMI

AVR-S970H

AV接收机

7.2 channels

90 watts per channel

8K Ultra HD

定制您的声音具有完整的连接和控制

Denon 产品的每个元素都经过精心打造，旨在提供令人难忘的音频体验。

AVR-S660H

详细信息和规格

在线说明书

Specifications

Number of Power Amps 5
Power Output (8 ohm, 20 Hz - 20 kHz, 0.08% 2ch Drive) 75 W
Power Output (6 ohm, 1kHz, 0.7% 2ch Drive) 100 W
Power Output (6 ohm, 1kHz, 1% 1ch Drive) 135 W

General

Speaker impedance 4-16Ω/ohms
Input sensitivity 200 mV
Frequency response 10 Hz - 100 kHz — +1, –3 dB (Direct mode)
S/N Ratio 98dB (IHF-A weighted, Direct Mode)
FM section (Tuning frequency range) 87.5 – 107.9 MHz
AM section (Tuning frequency range) 520 - 1710 kHz
Power Supply AC 230 V, 50 Hz
Power Consumption in W 340
Power Consumption No-Sound (ECO On / Off) in W 29 W / 39 W
Weight in kg 7.8
3.5mm audio line-in connection Yes
System Remote Control RC-1243
Standby Consumption in W 0.1
CEC Standby Consumption in W 0.5
Network Control On Consumption in W 2.0
Available colors: Black / Premium Silver Yes / No
Maximum Dimensions w/ Antenna 434 x 339 x 215 mm
w/o Antenna 434 × 339 × 151 mm
Carton Maximum Dimensions (W x D x H) 523 x 435 x 232 mm
Carton Weight (inc. product) in kg 9.7

Inputs/outputs

HDMI In / Out 6 / 1
Composite In / Out 2 / 1
Phono (MM) In Yes
Analogue In/out 2 / -
Digital Optical In/Out 2 / No
Front Inputs: Audio / Composite / Digital (Opt) / HDMI / USB No / No / No / No / Yes
Pre-out / Main-in 0.2 ch / no
Headphone output Yes
Ethernet Yes
AM/FM Tuner Yes
Digital In: Optical / Coaxial 2 / 0
Multichannel Pre-Out o (0.2)
Subwoofer Out 2
Number of Speaker Terminals 5
USB Audio / Made for iPod / Made for iPhone o / AirPlay / AirPlay
Speaker Terminal: Gold Plated Screw / Regular Screw No / Yes
FM Tuner with RDS Yes

Multichannel surround

DTS Neo:X / DTS Neural:X NEO: 6 / -
Max Number of Processing (Preamp) Channels 5.1
DTS HD Master / DTS:X Yes / No
Dolby TrueHD / Dolby Atmos Yes / No
Multichannel Stereo Yes
Dialog Enhancer Yes
Dolby ProLogic Il / Dolby Surround Yes / No

Sound enhancements

Discrete Power Amplifier 5
Audyssey MultEQ
Audyssey Dynamic EQ / Dynamic Volume Yes / Yes
Compressed Audio Restorer Yes

Network

DSD Audio Streaming up to DSD5.6
Gapless playback Yes (FLAC, WAV, ALAC, DSD)
Internet Radio TuneIn
Compatible with Remote APP for Smart Phones Android / iOS
Compatible with Remote APP for Tablets Android / iOS / Amazon Kindle
HEOS Multiroom and Streaming Yes
Lossy Formats: MP3 / WMA / AAC Yes / Yes / Yes
Lossless Formats: FLAC / ALAC / WAV Yes / Yes / Yes
FLAC HD 192/24 Yes
WAV 192/24 Yes
ALAC 192/24 Yes
AirPlay 2 Yes
Roon Tested Yes
Spotify Connect* / Tidal* / Deezer* / others * Yes / Yes / Yes / Yes
Amazon Prime Music* / Pandora* Yes / No
Ethernet Ports Yes
Wi-Fi Yes
Bluetooth Yes
Bluetooth Re-transmit for Bluetooth headphones Yes

Hdmi

HDMI Inputs: Back / Front 6 (3x 8K) / 0
HDMI max Resolution (8k / 4k) 8k/60 - 4k/120
HDMI to HDMI Scaling up to 8K 60/50
HDCP2.3 support Yes
HDMI: 8K / 4K / CEC / eARC Yes / Yes / Yes / Yes
HDMI: Dolby Vision / HDR 10+ / Dynamic HDR / HLG Yes / Yes / Yes / Yes

Others

Auto Speaker Setup by Microphone Audyssey MultEQ
FL Display 1 line
Graphic User Interface - GUI Hybrid GUI
GUI Languages 9
Voice Control - Works with Amazon Alexa Yes
Voice Control - Google Assist / Apple Siri Yes / Yes
Setup Assistent Yes
Quick Select Plus / Quick Select Yes / No
Firmware Update by: Network / USB Yes / Yes
Variable Cross Over Yes
Optimized Bass Redirection Yes
ECO Mode Yes
Auto Power Off Yes
Sleep Timer Yes

Multi-room / ci

HEOS Multiroom integrated Yes
TV Sound grouping Yes
Main room multichanel audio - Zone stereo downmix Yes
Webbrowser Setup Yes
IP Control / RS232 Control / Web Control / App Control Yes / No / Yes / Yes
